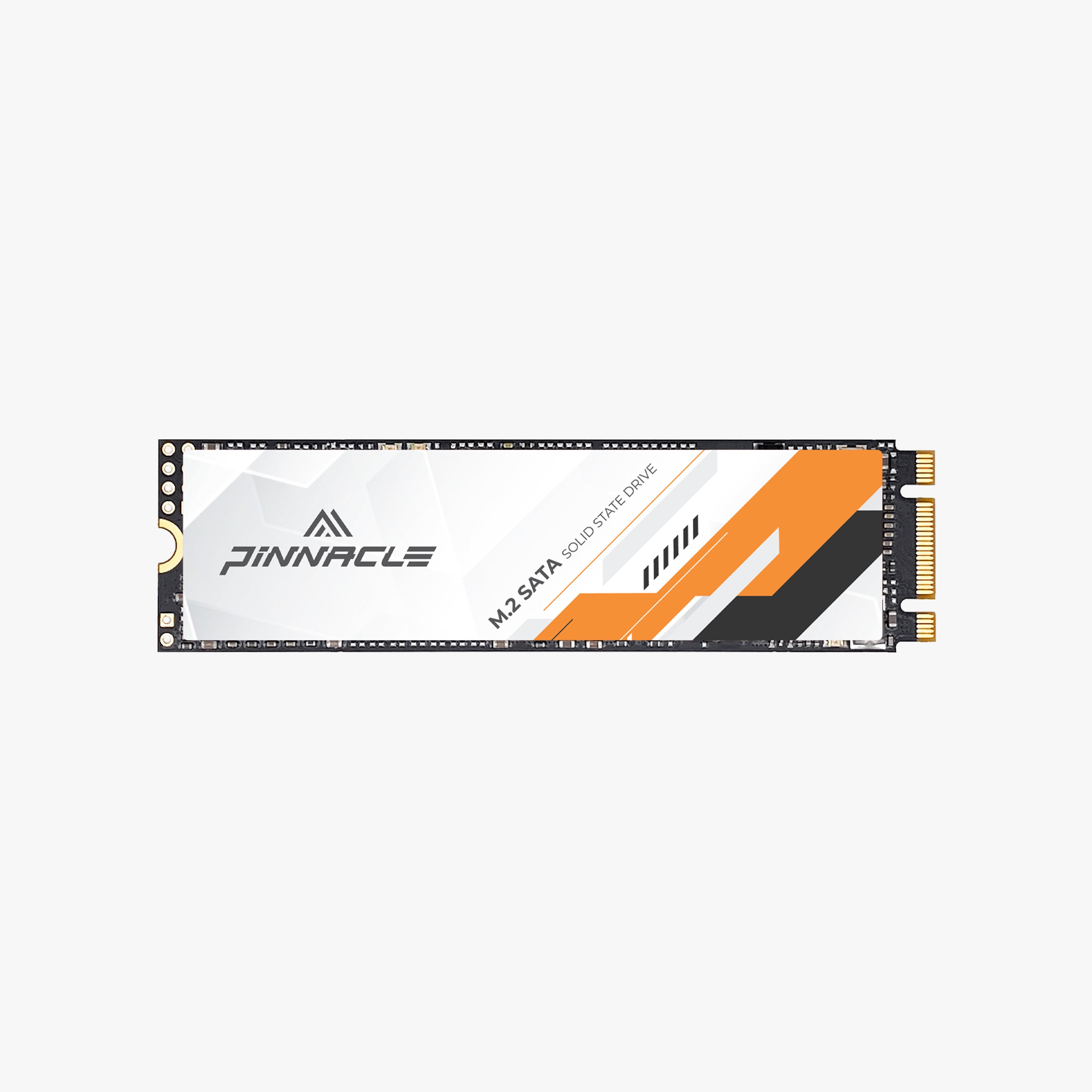

PINNACLE GAMING M.2 SATA SSD

About

Description

This Timetec SSD is designed to use the SATA III interface efficiently during both READs and WRITEs while delivering bandwidth-focused performance. 3D NAND Flash SSD technology enables enhanced boot times, faster application load times, reduced power consumption, and extended reliability.

Fast and Reliable

4 Times Faster Than HDD and High Efficiency Performance
Industry-leading 1,500,000 hours mean time to failure (MTTF)
2.5-inch Slim form factor drive in 7mm to fit in more systems (even slimmer notebooks)
Low Power Consumption for Longer Use
3 years product care

Performance

Speed and Terabyte Written

128GB Read/Write: up to 550/500 MB/s
256GB Read/Write: up to 550/500 MB/s
512GB Read/Write: up to 550/500 MB/s
1TB Read/Write: up to 550/500 MB/s
2TB Read/Write: up to 550/500 MB/s

4 Times Faster Than HDD

With great ultra-fast read and write speed, this Timetec SSD is 4 times faster than the traditional hard drive. It speeds up boot time, shutdown time and the response time of applications.

3D NAND Technology

3D Nand technology not only brings speed but also enhanced durability. With a higher tolerance for wear and tear compared to traditional storage devices, this SSD is built to last.

High Efficiency Performance

TIMETEC PREMIUM SSD supports Windows TRIM optimization function to release free space. It allows system to maximize the read/write performance and reduces performance degradation.

Resource

Download Datasheet

Specifications

SSD Form Factor M.2 2280

Interface SATA (6Gb/s)

Capacity 128GB, 256GB, 512GB, 1TB

Voltage DC 3.3V

Operation Temperature 0˚C ~ 70˚C

Storage Temperature -25°C – 85°C

DRAM Cache No

Terabyte Written (TBW) 256GB-128TBW, 512GB-256TBW, 1TB - 512TBW

Performance (Read/Write) 128GB: up to 550/500MB/s, 256GB: up to 550/500MB/s, 512GB: up to 550/500MB/s, 1TB: up to 550/500 MB/s, 2TB: up to 550/500 MB/s

MTBF 1,500,000 hours

Warranty 3-Year limited warranty
