About

Description

This Timetec SSD is designed to use the NVMe PCIe interface efficiently during both READs and WRITEs while delivering bandwidth-focused performance. 3D NAND Flash SSD technology enables enhanced boot times, faster application load times, reduced power consumption, and extended reliability.

  • 8 Times Faster Than SATA and High Efficiency Performance
  • Industry-leading 1,500,000 hours mean time to failure (MTTF)
  • Low Power Consumption for Longer Use
  • 5 years product care



2230 Short Form Factor

This small M.2 NVMe SSD is designed to fit into the ultra-compact M.2 2230 form factor, which is suitable for thin and light system designs.




Wide Compatibility

This Timetec 2230 SSD is compatible with Steam Deck, Microsoft Surface, Mini PCs, NUCs and HTPCs, Laptops and Desktops.





Specifications
SSD Form Factor M.2 (2230)
Interface NVMe (PCIe Gen 4 x4)
Capacity 512GB, 1TB
Voltage DC 3.3V
Operation Temperature 0˚C ~ 70˚C
Storage Temperature -25°C – 85°C
DRAM Cache No
Terabyte Written (TBW) 512GB - 300TBW, 1TB - 600TBW, 2TB - 1200TBW
Performance (Read/Write) 512GB - Up to 4,100/3,800MB/s, 1TB - Up to 5,100/4,600MB/s, 2TB - Up to 5,100/4,600MB/s
Dimensions 30(L) x 22(W) x 2.25(H) mm
Heatsink Material Graphene Heatsink
MTBF 1,500,000 hours
Warranty 5-Year limited warranty
Description

This Timetec SSD is designed to use the NVMe PCIe interface efficiently during both READs and WRITEs while delivering bandwidth-focused performance. 3D NAND Flash SSD technology enables enhanced boot times, faster application load times, reduced power consumption, and extended reliability.

  • 8 Times Faster Than SATA and High Efficiency Performance
  • Industry-leading 1,500,000 hours mean time to failure (MTTF)
  • Low Power Consumption for Longer Use
  • 5 years product care



2230 Short Form Factor

This small M.2 NVMe SSD is designed to fit into the ultra-compact M.2 2230 form factor, which is suitable for thin and light system designs.




Wide Compatibility

This Timetec 2230 SSD is compatible with Steam Deck, Microsoft Surface, Mini PCs, NUCs and HTPCs, Laptops and Desktops.





Specifications
SSD Form Factor M.2 (2230)
Interface NVMe (PCIe Gen 4 x4)
Capacity 512GB, 1TB
Voltage DC 3.3V
Operation Temperature 0˚C ~ 70˚C
Storage Temperature -25°C – 85°C
DRAM Cache No
Terabyte Written (TBW) 512GB - 300TBW, 1TB - 600TBW, 2TB - 1200TBW
Performance (Read/Write) 512GB - Up to 4,100/3,800MB/s, 1TB - Up to 5,100/4,600MB/s, 2TB - Up to 5,100/4,600MB/s
Dimensions 30(L) x 22(W) x 2.25(H) mm
Heatsink Material Graphene Heatsink
MTBF 1,500,000 hours
Warranty 5-Year limited warranty

Translation missing: en.products.product.sku:35TTTN2230GE4P-1TB

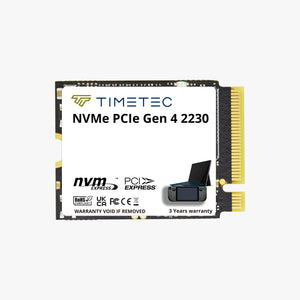

TIMETEC PREMIUM M.2 2230 PCIe Gen 4 SSD

TIMETEC by TIMETEC
Regular price
$72.99
Sale price
$72.99
Regular price
Shipping calculated at checkout.
Capacity:
Free U.S. Shipping
1-3 Business Days to Ship
