Description

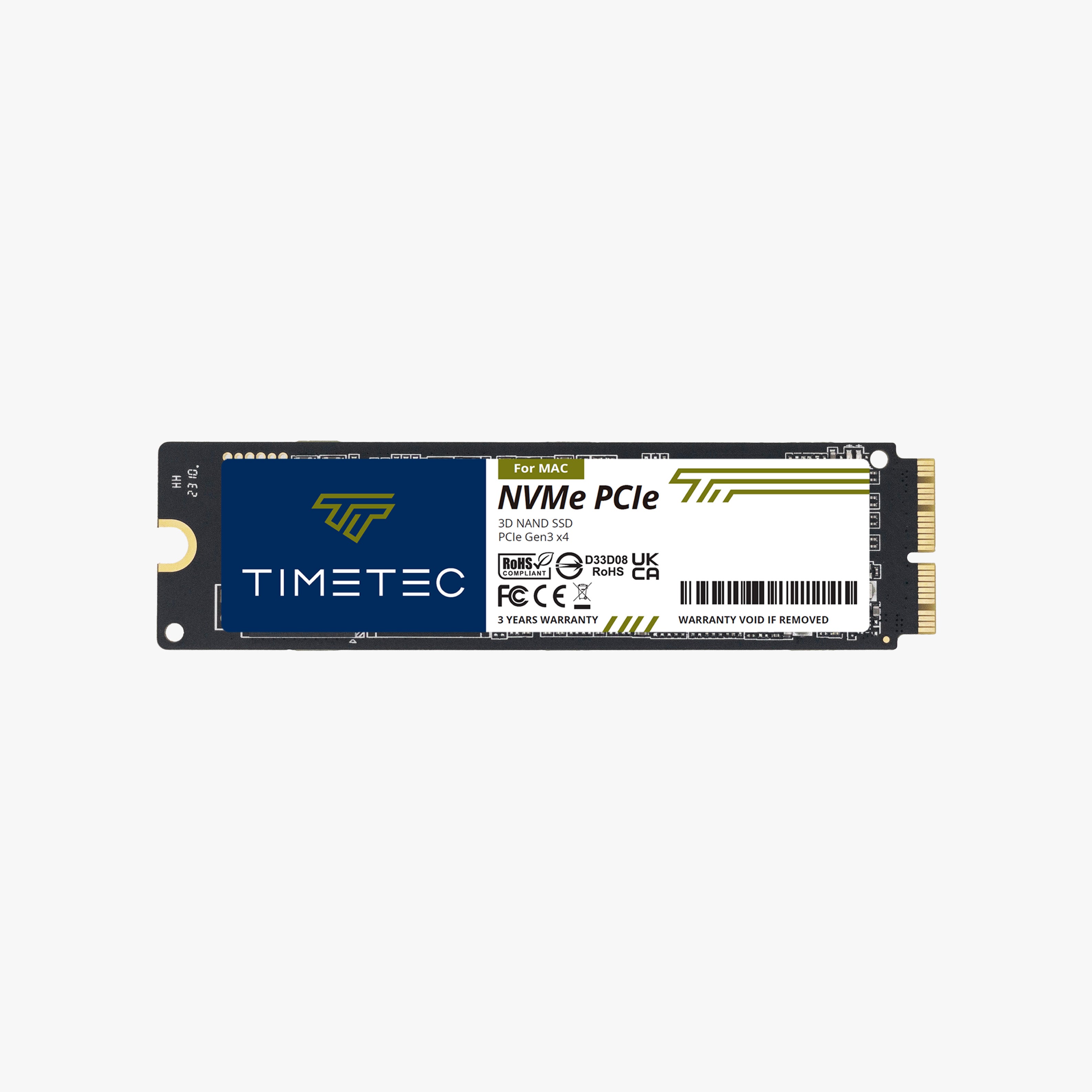

This Timetec SSD is designed to use the NVMe PCIe interface efficiently during both READs and WRITEs while delivering bandwidth-focused performance. 3D TLC NAND Flash SSD technology enables enhanced boot times, faster application load times, reduced power consumption, and extended reliability.

High Compatibility

MacBook Air (2013-2015, 2017)
MacBook Pro (2013-2015)
iMac (2013-2015, 2017, 2019)
Mac Pro (2013)
Mac Mini (2014)

Compatible EMC Numbers:

MacBook Air 11" (2631, 2924)
MacBook Air 13" (2632, 2925, 3178)
MacBook Pro 13" (2678, 2835, 2875)
MacBook Pro 15" (2674, 2745, 2876, 2881, 2909, 2910)
iMac 21.5" (2638, 2742, 2805, 2833, 2889, 3068, 3069, 3195)
iMac 27" (2639, 2806, 2834, 3070, 3194)
Mac Pro (2630), Mac Mini (2840)

1. Operating System of at least High Sierra 10.13 is REQUIRED for SSD recognition.

2. NOT compatible with Apple Boot Camp (Install a windows volume on that drive) on MacBookPro11,1 or MacBookAir6,1 or MacBookAir6,2.

3. Be sure to double-check the compatibility chart in the listing images and the DESCRIPTION below to confirm that this SSD works for your device. The EMC number is the best way to match.

3 Times Faster Than SATA

This Timetec PCIe NVMe SSD is 3 times faster than the SATA Interface. It’s ideal for reading and writing large amounts of game data, complex graphics, or loading heavy duty video and graphics editing software.

Designed For MAC

Designed to fit MAC device SSD connector. Built-in intelligent algorithm management mechanism, this Timetec SSD supports TRIM and advanced SLC cache technology to ensure reliable performance.

Resource

Download Datasheet

Specifications

SSD Form Factor M.2 For MAC

Interface NVMe (PCIe Gen 3 x4)

Capacity 256GB, 512GB, 1TB

Voltage DC 3.3V

Operation Temperature 0˚C ~ 70˚C

Storage Temperature -25°C – 85°C

DRAM Cache No

Terabyte Written (TBW) 256GB - 150TBW, 512GB - 350TBW, 1TB - 600TBW

Performance (Read/Write) 256GB up to 1,950/1,000 MB/s, 512GB up to 2,000/1,500 MB/s, 1TB up to 2,000/1,600MB/s

MTBF 1,500,000 hours

Warranty 5-Year limited warranty
