Description

Upgrade to the future of storage with our PCIe Gen 5x4 OPAL SED SSD. DRAM-less design for efficiency, high read/write speeds, and advanced encryption for ultimate data security.

Advanced Device Security Features

Secure Erase Secure: Erase is a standard NVMe format command and will write all “0x00” to fully wipe all the data on hard drives and SSDs. When this command is issued, SSD controller will erase its storage blocks and return to its factory default settings.

Crypto Erase: Crypto Erase is a feature that erases all data of an OPAL-activated SSD or a “SED” (Security-Enabled Disk) drive by resetting the cryptographic key of the disk. Since the key is modified, the previously encrypted data will become useless, achieving the purpose of data security.

Physical Presence SID (PSID): Physical Presence SID (PSID) is defined by TCG OPAL as a 32-character string and the purpose is to revert SSD back to its manufacturing setting when the drive is still OPAL-activated. PSID code can be printed on a SSD label when an OPAL-activated SSD supports PSID revert feature.

Specifications
SSD Form Factor M.2 2280
Interface NVMe 2.0 PCIe Gen 5 x4
Capacity 512GB, 1TB, 2TB, 4TB
Voltage DC 3.3V
Operation Temperature 0˚C ~ 70˚C
Storage Temperature -40°C – 85°C
DRAM Cache No
Terabyte Written (TBW) 512GB - 300TBW, 1TB - 600TBW, 2TB - 1200TBW, 4TB - 2400TBW
Performance (Read/Write) 512GB up to 9,300/6,000 MB/s, 1TB: up to 10,200/8,300 MB/s, 2TB: up to 10,300/8,600 MB/s, 4TB: up to 9,200/7,900 MB/s
Size 22mm x 80mm
MTBF 1,600,000 hours
Warranty 5-Year limited warranty
Description

Upgrade to the future of storage with our PCIe Gen 5x4 OPAL SED SSD. DRAM-less design for efficiency, high read/write speeds, and advanced encryption for ultimate data security.

Advanced Device Security Features

Secure Erase Secure: Erase is a standard NVMe format command and will write all “0x00” to fully wipe all the data on hard drives and SSDs. When this command is issued, SSD controller will erase its storage blocks and return to its factory default settings.

Crypto Erase: Crypto Erase is a feature that erases all data of an OPAL-activated SSD or a “SED” (Security-Enabled Disk) drive by resetting the cryptographic key of the disk. Since the key is modified, the previously encrypted data will become useless, achieving the purpose of data security.

Physical Presence SID (PSID): Physical Presence SID (PSID) is defined by TCG OPAL as a 32-character string and the purpose is to revert SSD back to its manufacturing setting when the drive is still OPAL-activated. PSID code can be printed on a SSD label when an OPAL-activated SSD supports PSID revert feature.

Specifications
SSD Form Factor M.2 2280
Interface NVMe 2.0 PCIe Gen 5 x4
Capacity 512GB, 1TB, 2TB, 4TB
Voltage DC 3.3V
Operation Temperature 0˚C ~ 70˚C
Storage Temperature -40°C – 85°C
DRAM Cache No
Terabyte Written (TBW) 512GB - 300TBW, 1TB - 600TBW, 2TB - 1200TBW, 4TB - 2400TBW
Performance (Read/Write) 512GB up to 9,300/6,000 MB/s, 1TB: up to 10,200/8,300 MB/s, 2TB: up to 10,300/8,600 MB/s, 4TB: up to 9,200/7,900 MB/s
Size 22mm x 80mm
MTBF 1,600,000 hours
Warranty 5-Year limited warranty

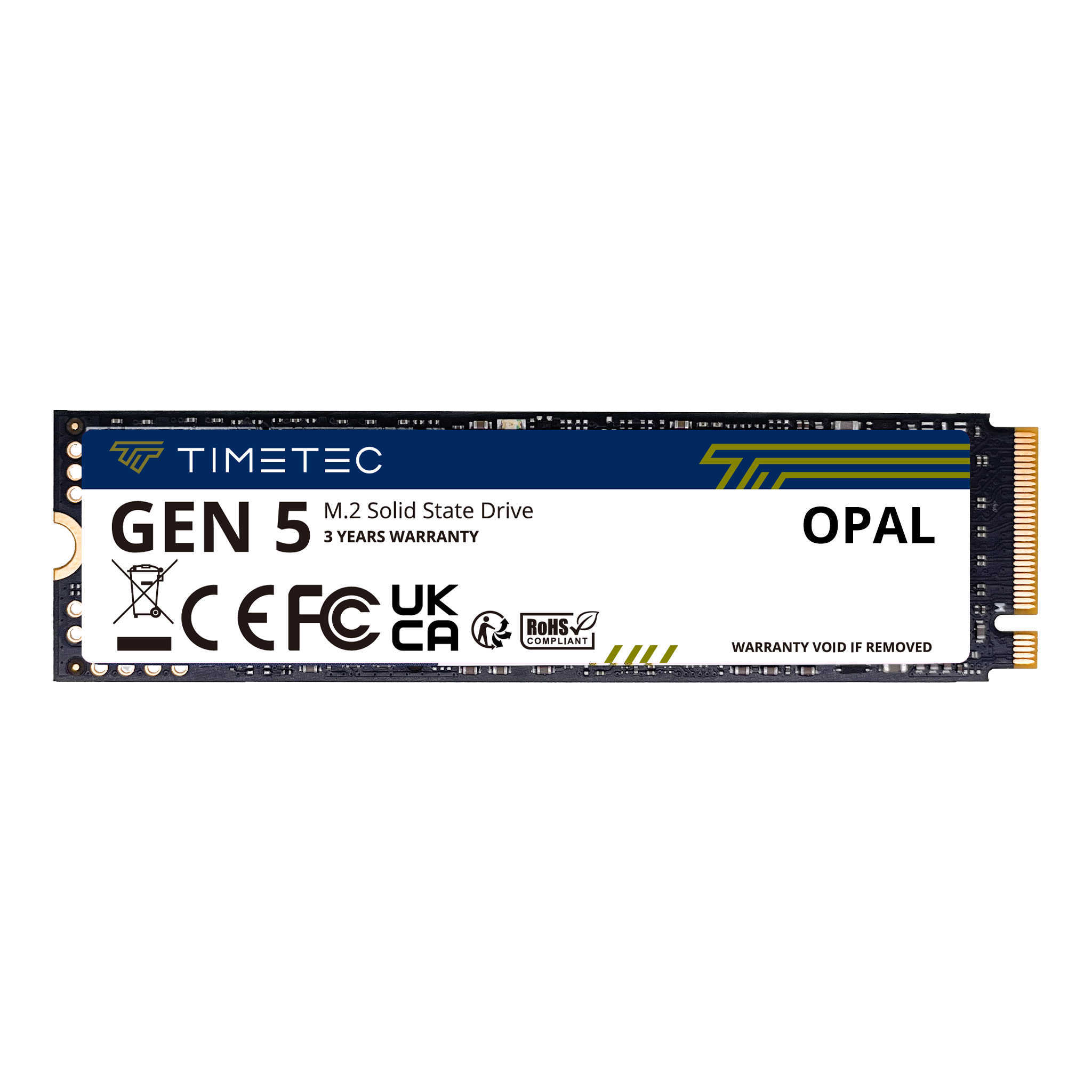

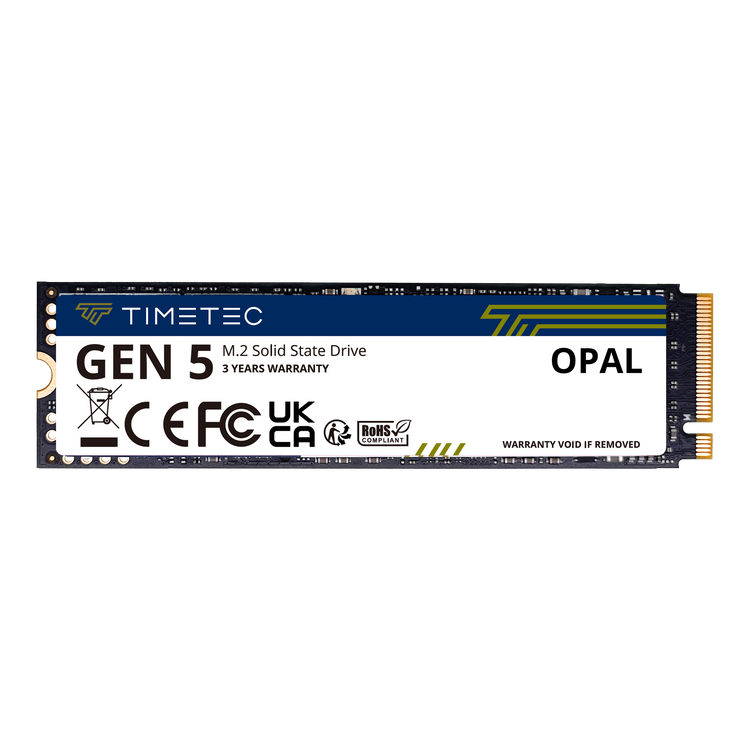

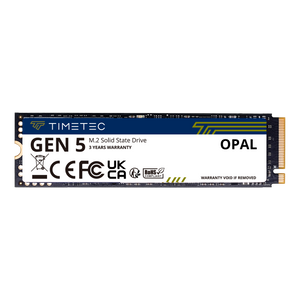

TIMETEC PREMIUM M.2 NVMe PCIe 5.0 Gen 5x4 OPAL SED SSD (No DRAM)
