About
Description
- NVMe PCIe Gen5 x4 Extreme High Read and Write Speeds: Sequential Read Speed up to 10,300MB/s and Write Speed up to 8,600MB/s with the standard Next Generation Form Factor (NGFF)
- An industry-leading 1,600,000 hours mean time before failure (MTBF) and up to 2400TB Written (TBW, Terabyte Written) for enhanced reliability
- Compatible with Operating Systems Windows 11 / Windows 10 / Windows 8.1 / Windows 8 / Windows 7, Linux 2.6.33 or later; Compatible with desktops and laptops that accept M.2 2280 NVMe PCIe Gen3x4 SSD, Backwards Compatible with backward compatible to PCIe Gen 2 and Gen 1; Support latest NVMe 1.3 protocol, Support the next-generation platforms of Intel and AMD. Backward compatible to PCIe Gen4, Gen3, Gen 2 and Gen 1
- Support S.M.A.R.T. technology, TRIM command functions, Advanced wear leveling, Bad block management, Over-Provision, End to end data path protection, Thermal throttling, Smart ECCTM, Smart Refresh TM, Drive log, TCG OPAL
- Included Contents: M.2 2280 NVMe PCIe5 x4 SSD (All Other Cables, Screws, Brackets Not Included); Five years limited warranty with free technical support service (Timetec M.2 PCIe SSDs which are purchased on or after August 1, 2020 have a 5-Year extended warranty.)
Specifications
SSD Form Factor
M.2 2280
Interface
NVMe 2.0 PCIe Gen 5 x4
Capacity
512GB, 1TB, 2TB, 4TB
Voltage
DC 3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40°C – 85°C
DRAM Cache
No
Terabyte Written (TBW)
512GB - 300TBW, 1TB - 600TBW, 2TB - 1200TBW, 4TB - 2400TBW
Performance (Read/Write)
512GB up to 9,300/6,000 MB/s, 1TB: up to 10,200/8,300 MB/s, 2TB: up to 10,300/8,600 MB/s, 4TB: up to 9,200/7,900 MB/s
Size
22mm x 80mm
MTBF
1,600,000 hours
Warranty
5-Year limited warranty
Description
- NVMe PCIe Gen5 x4 Extreme High Read and Write Speeds: Sequential Read Speed up to 10,300MB/s and Write Speed up to 8,600MB/s with the standard Next Generation Form Factor (NGFF)
- An industry-leading 1,600,000 hours mean time before failure (MTBF) and up to 2400TB Written (TBW, Terabyte Written) for enhanced reliability
- Compatible with Operating Systems Windows 11 / Windows 10 / Windows 8.1 / Windows 8 / Windows 7, Linux 2.6.33 or later; Compatible with desktops and laptops that accept M.2 2280 NVMe PCIe Gen3x4 SSD, Backwards Compatible with backward compatible to PCIe Gen 2 and Gen 1; Support latest NVMe 1.3 protocol, Support the next-generation platforms of Intel and AMD. Backward compatible to PCIe Gen4, Gen3, Gen 2 and Gen 1
- Support S.M.A.R.T. technology, TRIM command functions, Advanced wear leveling, Bad block management, Over-Provision, End to end data path protection, Thermal throttling, Smart ECCTM, Smart Refresh TM, Drive log, TCG OPAL
- Included Contents: M.2 2280 NVMe PCIe5 x4 SSD (All Other Cables, Screws, Brackets Not Included); Five years limited warranty with free technical support service (Timetec M.2 PCIe SSDs which are purchased on or after August 1, 2020 have a 5-Year extended warranty.)
Specifications
SSD Form Factor
M.2 2280
Interface
NVMe 2.0 PCIe Gen 5 x4
Capacity
512GB, 1TB, 2TB, 4TB
Voltage
DC 3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40°C – 85°C
DRAM Cache
No
Terabyte Written (TBW)
512GB - 300TBW, 1TB - 600TBW, 2TB - 1200TBW, 4TB - 2400TBW
Performance (Read/Write)
512GB up to 9,300/6,000 MB/s, 1TB: up to 10,200/8,300 MB/s, 2TB: up to 10,300/8,600 MB/s, 4TB: up to 9,200/7,900 MB/s
Size
22mm x 80mm
MTBF
1,600,000 hours
Warranty
5-Year limited warranty
Translation missing: en.products.product.sku:

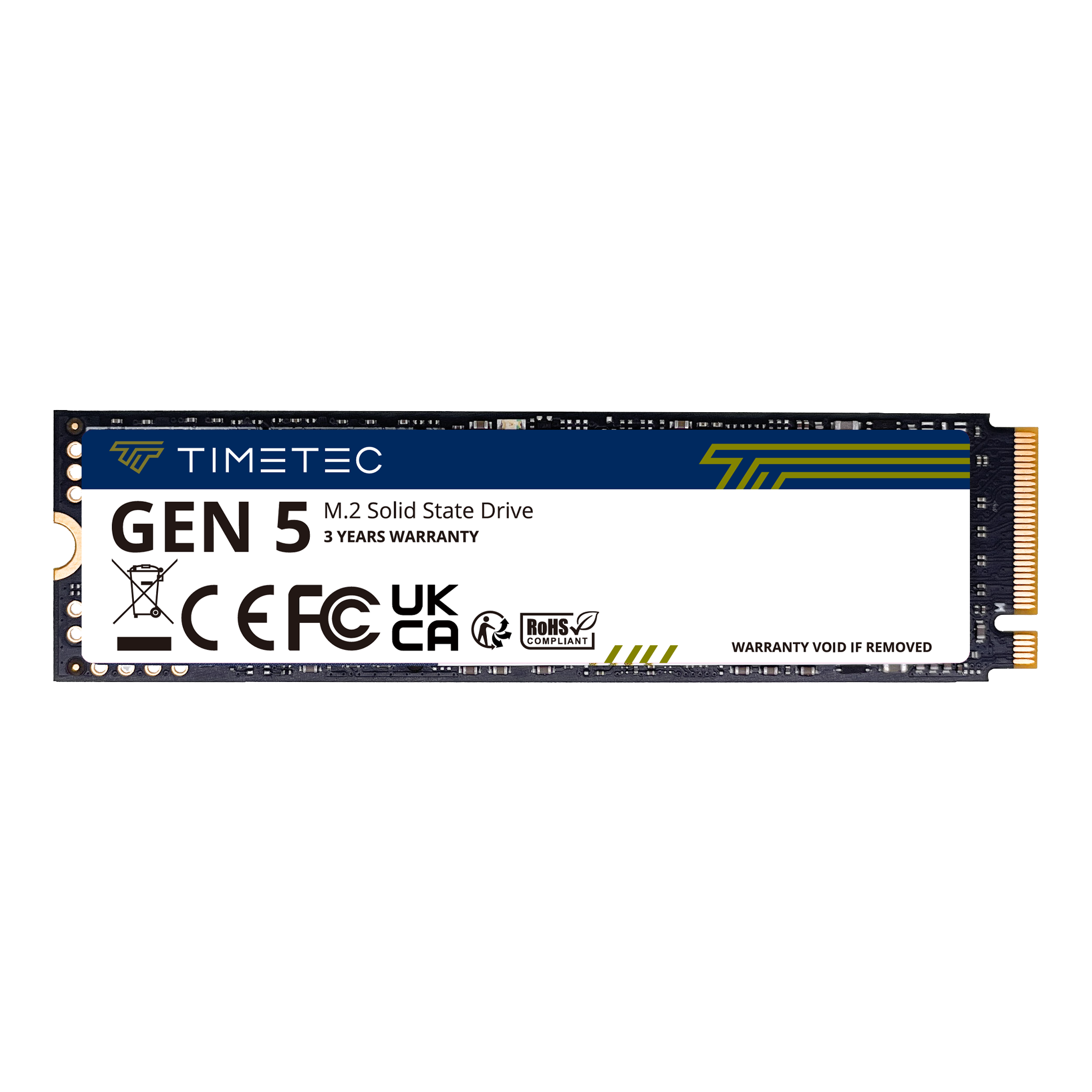

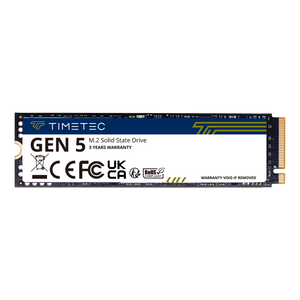

TIMETEC PREMIUM M.2 NVMe PCIe 5.0 SSD
TIMETEC
by
TIMETEC
- Regular price
- $140.00
- Sale price
- $140.00
- Regular price
-
Shipping calculated at checkout.
Out of stock
Free U.S. Shipping
1-3 Business Days to Ship
Product Resources
1
RoHS Certificate of Compliance
2
